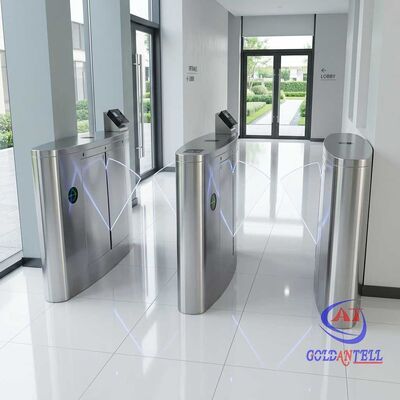

Modern Office Speed Gate Clear Acrylic Wing Turnstile Optical Sensor Access Control for Lobby and Co-working Space CE

  • Modern Office Speed Gate Clear Acrylic Wing Turnstile Optical Sensor Access Control for Lobby and Co-working Space CE
  • Modern Office Speed Gate Clear Acrylic Wing Turnstile Optical Sensor Access Control for Lobby and Co-working Space CE
Lugar de origem GuangDong,China
Marca Goldantell
Certificação CE/ROHS/FCC/IS9001
Número do modelo GAT-232
Quantidade de ordem mínima 1 unidade
Preço Negociável
Detalhes da embalagem Embalado em caixa primeiro e depois reforçado com caixa de madeira de exportação para embalagem exte
Tempo de entrega 7 dias úteis após receber seu pagamento
Termos de pagamento T/T, Western Union, LC, Paypal
Habilidade da fonte 1.000 unidades por mês
Detalhes do produto
Peso bruto 70kg Peso líquido 65kg
Tamanho 1200*280*1000mm Material 304 steel/316 inoxidáveis de aço inoxidável
Tamanho do pacote 1280*370*1070mm Porta de comunicação RS485, TCP/IP
Comprimento do braço retrátil 260 mm Velocidade de passe 40 pessoas/min (aberto), 25-30 pessoas/min (fechado)
Tensão de trabalho AC220±10%V 50±10%HZ
Deixe um recado
Descrição de produto
Modern Office Speed Gate Clear Acrylic Wing Turnstile
Optical Sensor Access Control for Lobby and Co-working Space CE Certified
Product Overview
Automatic Luxury Speed Gate for Office Building RFID Pedestrian entrance high-speed revolving door with face recognition capability.
  • Optical Sensor Access Control: Ensures smooth and secure entry for office visitors
  • Modern Design: Sleek and transparent acrylic wing turnstiles enhance aesthetics
  • Lobby and Co-working Space Compatibility: Ideal for busy entrances
  • CE Certified: Meets international safety standards for reliable performance
Technical Specifications
Item Details
Name Bridge type flap turnstile
Size 1200mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after breakdown 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24 V brush motor
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% (non-condensing)
Housing material Domestic standard 304 # stainless steel
Working voltage AC220±10%V 50±10%HZ
Project Applications
  • Movie theaters
  • Fitness halls
  • Country clubs
  • Fairgrounds
  • Clubs
  • Swimming halls
  • Fitness gyms
  • Hotels
  • Factories
  • Banks
  • Hospitals
  • Schools
Key Functions
  • Rapid identification technique, accurately and efficiently recognizing magnetic cards, bar code cards, ID cards, and IC cards
  • DC Brushless Motor, maintenance-free
  • Auto-lift-arm function: the arm lifts automatically with an alert when power is restored
  • Auto-drop-arm function: the arm drops down automatically (default) or allows free passing when power is off
  • Automatic Reset Function: cancels authority automatically if the gate is not passed within a set time (adjustable from 1-60s)
Product Image
Automatic Luxury Speed Gate for Office Building RFID Pedestrian Entrance
Frequently Asked Questions
How about your package?
Seaworthy wooden case + foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days.
Service & Support
  • Friendly and professional customer service available within 16 hours
  • Over 10 years of ODM/OEM capability, offering product shape design, custom logos, and packaging
  • Comprehensive solutions including system software management to save time and costs
  • Special repair service: no need to return products; video diagnosis and free spare parts within 1-year warranty
Key Advantages
  • Security solution provider, saving time and costs
  • High-quality products with competitive pricing, offering OEM and ODM services
  • Professional technical support and excellent after-sales service
  • Custom design shapes and logos; free for large orders
  • Fast delivery and safe shipping methods
  • 1-year warranty with lifetime technical support
  • Quick response: 24-hour online service with replies within 8 hours
Access Control Options
  • Supports fingerprint, face recognition, card reader, QR code, and barcode ticket systems
  • Special functions: counter and coin-operation options
  • ESD tester system integration available
