51=Four-arm 90 Degree Full Height Turnstile Heavy Duty Solenoid Locking High Security Gate for Military and Power Plant CE

  • 51=Four-arm 90 Degree Full Height Turnstile Heavy Duty Solenoid Locking High Security Gate for Military and Power Plant CE
  • 51=Four-arm 90 Degree Full Height Turnstile Heavy Duty Solenoid Locking High Security Gate for Military and Power Plant CE
Lugar de origem GuangDong,China
Marca Goldantell
Certificação CE/ROHS/FCC/IS9001
Número do modelo GAT-513
Documento Full Catalog Of Full Height...te.pdf
Quantidade de ordem mínima 1 unidade
Preço Negociável
Detalhes da embalagem Embalado em caixa primeiro e depois reforçado com caixa de madeira de exportação para embalagem exte
Tempo de entrega 7 dias úteis após receber seu pagamento
Termos de pagamento T/T, Western Union, L/C, Paypal
Habilidade da fonte 2,000pcs pelo mês
Detalhes do produto
Tamanho do produto 2350L*1350W*2300H (MM) Material Aço Inoxidável 304
Tipo Turbinas de acesso duplo de altura total Peso líquido 200kg
Peso bruto 250kg Compatível Leitor do RFID Reader&Fingerprint, acess da moeda, leitor de código de QR, sistema de código de barr
Porta de comunicação RS485, TCP/IP Aplicativo Prisão, fábrica, governo etc.
Pacote 4 pacotes, 10CBM Tensão de trabalho AC220 ± 10%V, 50 ± 10%Hz
Movimento de trabalho Válvula solenóide CC 24 V Velocidade de passe 30 pessoas/minuto
Destacar

Four-arm full height turnstile with solenoid locking

,

Heavy duty full height turnstile for military

,

High security gate turnstile CE certified
Deixe um recado
Descrição de produto

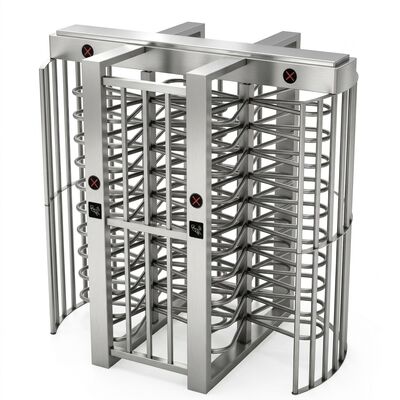

Four-Arm 90 Degree Full Height Turnstile
Heavy duty solenoid locking high security gate designed for military facilities, power plants, and other critical infrastructure. CE certified for quality assurance.
Product Overview
This full height turnstile represents advanced intelligent passageway management technology. Constructed from durable, rust-proof 304 stainless steel, it provides secure access control while maintaining comfortable passage space and preventing unauthorized entry.
Key Features
  • Precision engineering for high-security applications
  • Ideal for prisons, office buildings, government facilities, and statistical offices
  • LED indicator lights for clear operation status visibility
  • Compatible with various access control systems (RFID, fingerprint, QR code, etc.)
  • Unique two-way anti-reverse function for enhanced security
  • Programmable operating status via built-in control board
  • Automatic reset function (1-60 seconds adjustable)
  • Supports unidirectional or bidirectional access control
  • Remote management capability via computer interface
  • Customizable housing length and design options
  • Adjustable normally open/closed settings
Technical Specifications
Specification Details
Size 2350L × 1350W × 2300H (MM) or custom size
Communication Interface Standard RS 485 interface, distance ≤1200m
Working Voltage AC220±10%V, 50±10%HZ
Working Movement DC 24 V solenoid valve
Reset Time After Breakdown 10 seconds
Passage Width ≤600 mm
Time of Opening 0.2 second
Pass Speed 30 persons/min
Time to Work After Power On 3 seconds
Normal Running Life 3 million cycles
LED Light Direction arrow indicators
Working Environment Indoor/outdoor (with tent) -25℃ to 70℃
Housing Material Domestic standard 304# stainless steel
Relative Humidity ≤90% (non-condensing)
Input Interface +12V level signal or pulse width >100 ms 12V pulse, drive current >10 mA
Competitive Advantages
  • 24-month quality guarantee for peace of mind
  • OEM/ODM services available (custom designs, logos, and packaging)
  • Comprehensive pre-sale and after-sale support
  • Fast delivery times to meet project deadlines
  • Professional engineering support for integration
  • Special discounts for distributors and agents
Frequently Asked Questions
Can you do OEM service?
We offer comprehensive OEM services including custom turnstile designs (size, material, LED indicators), logo printing, and customized retail packaging. We can also create designs based on your specific requirements.
Is your turnstile compatible with different access control systems?
Yes, our intelligent turnstile works with various access controllers including RFID cards, fingerprint scanners, QR/barcode systems, and ESD test control systems. We can also provide compatible access control software or systems.
What is your warranty and after-sales service policy?
We provide a 12-month quality guarantee and have English-speaking sales and support teams available to assist with any after-sales needs.
What are your lead times?
Standard items:
• 10-50 sets: 5 working days
• 50-100 sets: 7-10 working days
• 200-500 sets: 10-15 working days
Custom designs or packaging may require an additional 3-10 working days.
What payment methods do you accept?
We accept TT, Western Union, and L/C payments. Our company participates in Trade Assurance to protect your order security.
