High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate

  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
Lugar de origem Guangdong, China
Marca Goldantell
Número do modelo GAT-686
Quantidade de ordem mínima 2
Preço $1,164

Contacte-me para amostras grátis e vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tipo de controle de acesso Cartão RFID, código QR Horário de abertura da barreira 0,2 s
Interface de comunicação RS-232, TCP/IP, RS485 Direção de operação 2 vias
Motor de barreira Motor sem escova Material Aço inoxidável, 304, 316 aço inoxidável
Nível de proteção IP54 Velocidade deslizante 0,6 segundo
Fonte de energia AC 100-240V Largura da pista 60cm, 90cm (personalizado 90 ~ 120cm)
Taxa de fluxo 35-40 pessoas por minuto Dimensão 1400 * 200 * 1000 mm
Material da asa Acrílico Hora restaurada 10 segundos
Temperatura de trabalho -10℃ ~ 70℃
Destacar

0.6s Sliding Speed Swing Turnstile Gate

,

IP54 Protection Access Control Turnstile

,

35-40 Persons/Minute Security Turnstile
Deixe um recado
Descrição de produto
2D Barcode Ticket System Gate with RFID Card Swipe Turnstile
Product Description

High-performance swing access control turnstile for marine parks and secure facilities, compatible with 2D barcode tickets, QR codes, and RFID card systems.

Applications

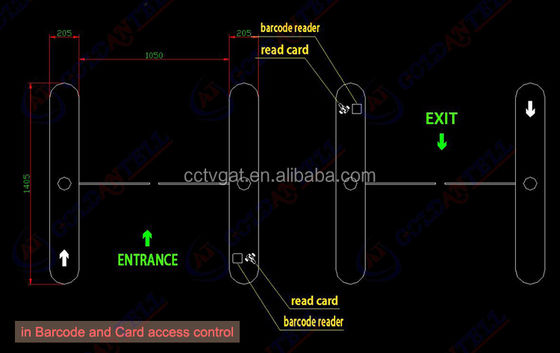

Access Width: Within 900mm space for comfortable pedestrian passage

  • Public Places: Lobby entries, subways, airports, stations, libraries, parks, exhibition halls, stadiums, museums, apartments, offices, and commercial buildings
  • Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, clubs, swimming pools, and gyms
  • Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrance/exit attendance systems
High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 0 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 1
Technical Specifications
Type High speed gate & full automatic Swing Turnstile
Product Model GAT-686
Product Size 1400×200×1000mm
Path width Within 900mm (for one pair)
Direction Single or bi-directional (optional)
Time of opening/closing 0.6 second
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down 10 seconds
Normal running life 3 million cycles
Working environment Indoor/outdoor (with shelter) -10℃~70℃
Drive motor DC24V brush motor
Key Features
  • Self-diagnostic and alarm functions for easy maintenance
  • Programmable operation status via control board
  • Anti-pinch safety protection
  • Visual and audible alarms for unauthorized access
  • Automatic locking until receiving opening signal
  • Adjustable door synchronization
  • Automatic reset function with adjustable timing
  • Optional LCD information display
  • Audible operation prompts
Construction & Materials
  • 304 stainless steel construction
  • IP54 waterproof rating
  • Elegant, anti-rust design
  • CE Certified
  • Fail-safe operation (opens when power is off)
  • Compatible with multiple access control systems (RFID, fingerprint, QR/barcode, ESD)
High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 2 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 3
Customization Options

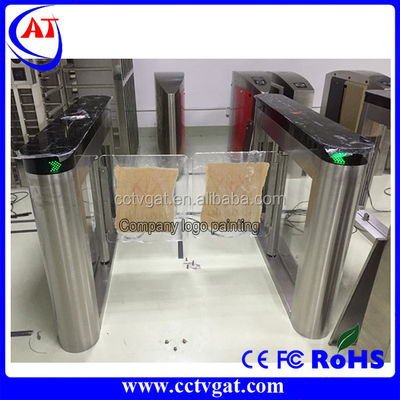

  • Company logo printing
  • Custom dimensions and shapes

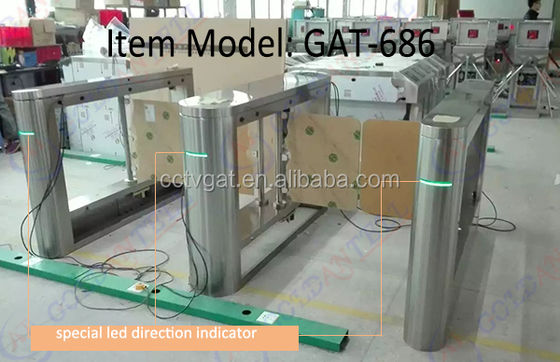

  • Optional LED indicators and LCD displays
  • Special color configurations
Company Information

Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer of intelligent turnstiles and parking management systems with over 8 years of industry experience. Our products are exported to more than 50 countries worldwide.

High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 4 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 5
