Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply

  • Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply
  • Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply
  • Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply
  • Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply
  • Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply
  • Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply
Lugar de origem Guangdong, China
Marca Goldantell/OEM
Número do modelo GAT-206
Quantidade de ordem mínima 1
Preço $753

Contacte-me para amostras grátis e vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Horário de abertura da barreira 0,2 s Interface de comunicação RS-232, RS485, TCP/IP
Direção de operação 1-way Motor de barreira Motor sem escova
Nível de proteção IP54 Dimensão 1200*280*1000mm (L*W*H)
Largura da pista 55-130CM Fonte de energia AC 110 ~ 240V 10% 50/60Hz
Material de moradia 304 aço inoxidável Troca de fonte de alimentação AC220 ± 10%V 50Hz ou AC110 ± 10%V 60Hz
Material do braço 10mm acrílico, vidro temperado ou aço Largura da passagem 900mm
Sensores infravermelhos 6 ~ 10 pares Taxa de fluxo ideal 40 pessoas/min (aberto), 35 pessoas/min (fechado)
Umidade de trabalho 30%~95%
Destacar

1200*280*1000mm Dimension Bi-Directional Swing Gate Turnstile

,

55-130CM Lane Width Bi-Directional Swing Gate Turnstile

,

AC 110~240V Power Supply Bi-Directional Swing Gate Turnstile
Deixe um recado
Descrição de produto

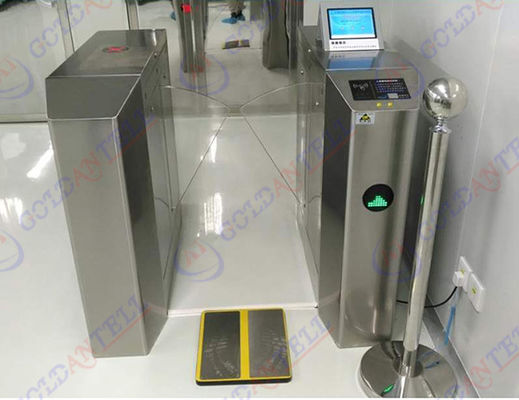

Bi-Directional Swing Gate Turnstile for Gym Security Access Control
Manufactured with ESD features, this coin-operated turnstile provides secure access control for various facilities with its durable stainless steel construction and advanced functionality.
Applications
  • Complete stainless steel construction suitable for interior or exterior installation
  • Double core engine supports both sides access for multi-channel applications
  • Provides security features including anti-pinch, time attendance, and passing management
  • 485 interface for long-distance control
  • IP54 rated for both outdoor and indoor use
  • Operates smoothly with minimal noise
Technical Specifications
1 Cabinet dimension 1200 (L) x 280 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 900mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (adjustable)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Key Features
  • Infrared reset function (Optional: 4 pairs or 6 pairs Infrared) with induction clamp function
  • Bidirectional operation allowing entry and exit from one pair of turnstiles
  • Real-time trouble self-detect and alarm indication for system safety
  • Selectable normally open or close mode for effective passenger flow control
  • Humanized reset function for over time passing
  • Remote management capability via computer
  • Flashing light prompt function for easy problem identification
Ideal Project Sites
Exhibition halls, Commercial buildings, Parks, Offices, Stadiums, Libraries, Museums
Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply 0
Product Advantages
  • 16-hour professional customer service support
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system solutions including software management
  • Convenient repair service with video support and free spare parts within warranty
Frequently Asked Questions
Q: How long is your warranty period?
A: Standard one-year guarantee with lifetime technical support.
Q: How about the lead time?
A: Regular products: 7-10 working days; Customized products: 10-15 working days.
Q: What is the working environment?
A: Suitable for both indoor and outdoor use (with optional rain shed).
Q: Can I customize it?
A: Yes, we specialize in OEM/ODM services with extensive government project experience.
Company Information
Shenzhen Goldantell Technology Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile, access control system and parking management products since 2007. We offer customized products and OEM services with new designs introduced annually.
Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply 1 Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply 2
Our Services & Strength
  • Professional design team for OEM and ODM projects
  • CE approved with successful European government project experience
  • Experienced sales team with 4+ years in turnstile industry
  • Competitive pricing with high quality standards and excellent after-sales service
  • Custom solutions including complete access control systems
Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply 3
Pre-sale & After-sale Service
  • Pre-sale: Detailed product consultation and information
  • On-purchase: Regular production updates with photos and testing videos
  • After-sale: Comprehensive installation and usage guidance
  • OEM/ODM: Custom logo, size, color, and other specifications
  • Professional support: 16-hour response to inquiries
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin
Skype: goldantell02
Bi-Directional Swing Gate Turnstile with 1200*280*1000mm Dimension 55-130CM Lane Width and AC 110~240V Power Supply 4
